รายละเอียดสินค้า:
การชำระเงิน:
|
ประเภท: | อะแดปเตอร์ไฟเบอร์และตัวเชื่อมต่อ | จำนวนเส้นใย: | 1. |
---|---|---|---|
ใช้: | FTTH | ชื่อผลิตภัณฑ์: | ช่องเสียบสายไฟเบอร์ออปติกรวดเร็ว |
ใบสมัคร: | FTTH FTTB เครือข่าย FTTX | สี: | สีน้ำเงิน |
การประกัน: | 1 ปี | ประเภทเส้นใย: | ไฟเบอร์เดี่ยวโหมดเดียว |
วัสดุ: | พลาสติก | น้ำหนัก: | 5g |
ประเภทตัวเชื่อมต่อ: | LC | ฟังก์ชัน: | การเชื่อมต่อเครือข่ายออปติคอล FTTH |
ท่าเรือ: | เซินเจิ้น |

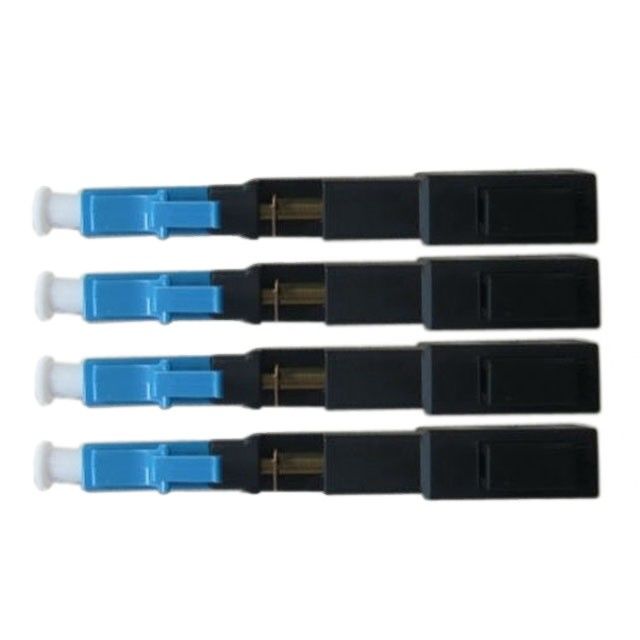

Fiber optic LC/UPC fast connector
The Optical Field Assembly Connectors Precision metallic V-Groove components with co-axial self centering, excellent and durable fixing property. The structure base on unique box-building crimping technology. Preseting the Bending fiber prevent the cable from draging. Integrated protection of the casing to withstand harsh indoor environment. After terminating, both the optical and mechanical performance reach the standard for FTTH.
Characteristics:
Good performance and High success rate.
Easiness in installation with average splicing time of 15 sec
Special tool is simple and convenient to use.
Reusable and repeat orperation times are up to 100.
Integrated protection of the casing to prevent the connector form impact
On line tension is up to 20N to protect the connector from the draging
The maxmum tension is up to 100N. It’s the most safety connector
Application:
FTTX/FTTH fiber to the home
Local area network and smart grid
Mining and Oil
Security equipment
Optical Characteristics:
Items | G.652 | G.657A | super soft fiber | |
Insert loss | @1310 nm | / | ≤ 0.3dB | ≤ 0.25 dB |
@1550 nm | / | ≤ 0.35 dB | ≤ 0.3 dB | |
Return loss | @1310 nm | / | ≤ -40 dB | ≤ -45 dB |
@1550 nm | / | ≤ -40 dB | ≤ -45 dB |
Environment Parameters
Test Item | Change IL | Change RL | Test condition |
Mechanical life | ≤ 0.2 dB | ≤ 5 dB | 500 (times)300/100010D/20D |
On line tension | ≤ 0.2 dB | ≤ 5 dB | 20N300/100010D/20D |
Impation | ≤ 0.2 dB | ≤ 5 dB | 4m high / 3 axis/ 3times300/100010D/20D |
High temperature storage | ≤ 0.2 dB | ≤ 5 dB | 80C / 96(hours)300/100010D/20D |
Low temperature storage | ≤ 0.2 dB | ≤ 5 dB | -40C / 96(hours) |
Temperature cycling | ≤ 0.2 dB | ≤ 5 dB | -40C – 75C / 96(hours) |
Storage/Operating Temperature: -40°C to +70°C
